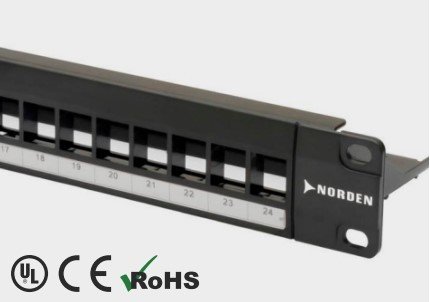

COPPER PATCH PANEL BLANK
Norden Shielded and unshielded Copper Patch Panel supports all types of keystone jacks. It exceeds TIA and ISO component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications. Each port of the panel is numbered and has a designated label area for clear port identification.

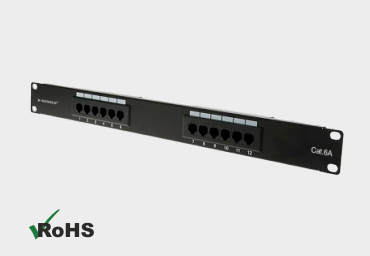

CATEGORY 6A UTP PCB PUNCH DOWN PATCH PANEL
Norden Category 6A Unshielded PCB Punch Down Patch Panel surpasses TIA and ISO standards, ensuring exceptional performance for LAN, multimedia, and Power over Ethernet applications. It facilitates easy termination using a Krone or 110 punch down tool, with color-coded labels for both 568A and 568B wiring schemes. Built to meet critical cabling parameters such as NEXT, FEXT, attenuation, and return loss, this panel is compatible with 23-26 AWG stranded and solid conductors. With a 1U height, it fits standard 19" server racks, and its IDC dual contacts help reduce crosstalk. The panel also features horizontal termination and clear markings for straightforward installation.
CATEGORY 6 UTP PATCH PANEL BLANK PUNCH DOWN SHUTTERED / UN SHUTTERED
Blank UTP Punch Down patch panel from Norden exceeds TIA and ISO component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications. A rear cable management bar is supplied which acts as a stress reliever for terminated cables. All performance parameters, including NEXT, FEXT Attenuation and Return Loss are designed to meet the Cabling standard. The patch panel comes with mini cable ties, cage nuts and rear cable management bar as standard.

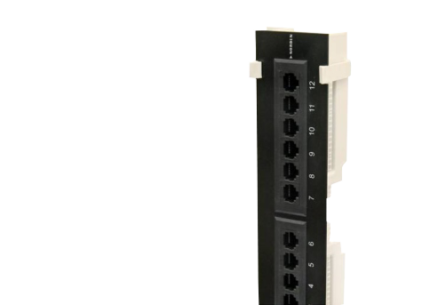

Category 6 Unshielded Patch Panel Vertical Loaded 12P
Category 6 Unshielded Patch Panel Vertical Loaded 12 Port from Norden exceeds TIA and EIA component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications. This patch panel outlets will be available in loaded Version and the front of the panel each port is numbered. The patch panel is ideal for locations where cabinets are not present or where rack space is limited. The punch down termination offers fast and reliable installation of unshielded cable, quick and easy in termination.

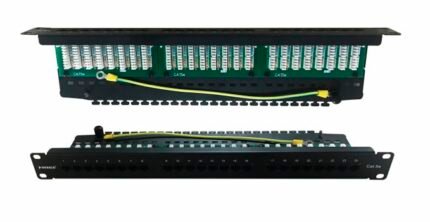

Category 6 PCB Punch Down Right Angled Patch Panel 24 Port Loaded
Category 6 PCB Punch Down Patch Panel from Norden exceeds TIA and ISO component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications.The Right angled mounted PCB provides easy termination using a Krone or 110 punch down tool and there are colour coded labels for both 568A and 568B wiring configurations. All performance parameters, including NEXT, FEXT Attenuation and Return Loss are designed to meet the Cabling standard. The patch panel comes with mini cable ties, cage nuts and rear cable management bar as standard.

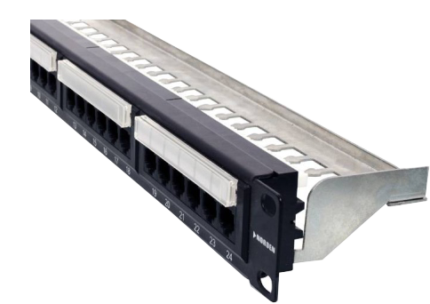

Category 5E Unshielded Patch Panel
High quality Category 5E Patch panels form NORDEN are color coded for both 568A and 568B standards. Dual type Termination block accept both Krone and 110 type punch down tool. Robust and installer friendly design makes reduced installation and operating costs. The pack includes cable manager, mounting screws and cable ties. Modular and expandable comprehensive product range provides up to 48 ports in a single panel.
Category 5E PCB Punch Down Right Angled Patch Panel
Category 5E PCB Punch Down Patch Panel from Norden exceeds TIA and ISO component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications.The Right angled mounted PCB provides easy termination using a Krone or 110 punch down tool and there are colour coded labels for both 568A and 568B wiring configurations. All performance parameters, including NEXT, FEXT Attenuation and Return Loss are designed to meet the Cabling standard. The patch panel comes with mini cable ties, cage nuts and rear cable management bar as standard.
CAT 6A UNSHIELDED PATCH PANEL BLANK TOOL LESS
Blank UTP Tool Less patch panel from Norden exceeds TIA and ISO component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications. Each port of the panel is numbered and has a designated label area for clear port identification. Keystone outlets can be snapped in to the 10’’ frame without the need for tooling of any type and is supplied in unloaded version. The tool-less jack termination offers fast and reliable installation of unshielded cable, quick and easy in termination. A rear cable management bar is supplied which acts as a stress reliever of terminated cables. The patch panel comes with mini cable ties, cage nuts and rear cable management bar as standard. Enhanced cable retention fixture and unique assembly. Supports solid 22-24 AWG wires and stranded 24-26 AWG

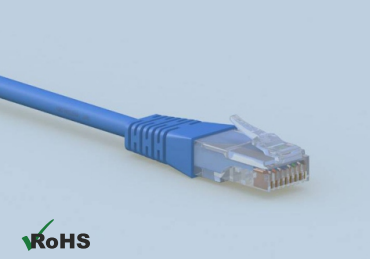

Category 6a F/FTP Patch Cord
Norden Cat6A F/FTP patch cord delivers optimal transmission & Networking performance with reduced Insertion loss and Alien crosstalk. This is fully backward compatible to Category 6(Class E) and Category 5e (Class D) products and maximizes productivity levels 10 times the data throughput of Category 6.Each patch cord is tested with Fluke tester and individual cover include with the report. This Patch cord is tested for transmission frequencies up to 500 MHz and compatible with the 10 Gigabits applications including the following protocols: Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-Any LAN 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM Voice.
CATEGORY 6A UTP CROSSOVER PATCH CORD
Norden Category 6A UTP Cross-over patch cord delivers optimal transmission & Networking performance with reduced Insertion loss and Alien crosstalk. This is fully backward compatible to Category 6 (Class E) and Category 5E (Class D) products and maximizes productivity levels 10 times the data throughput of Category 6. Each patch cord is tested with Fluke tester and individual cover include with the report. This Patch cord is tested for transmission frequencies up to 500 MHZ and compatible with the 10 Gigabits applications, including the following protocols: Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-Any LAN100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM Voice
