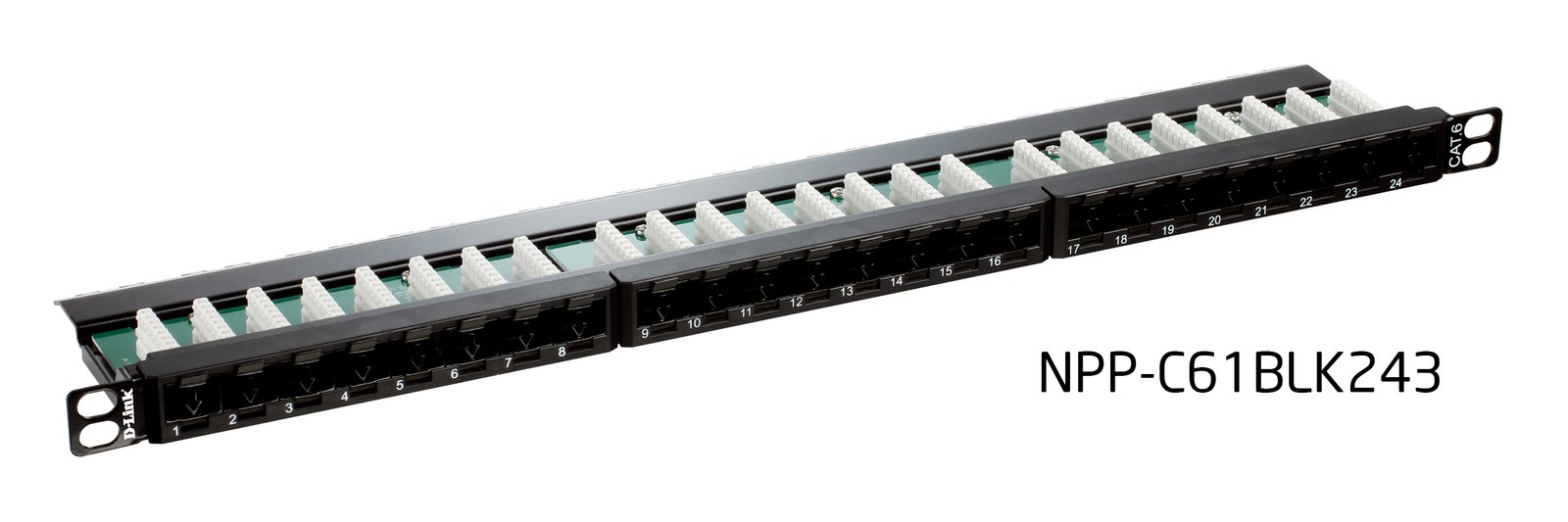

NPP-C61BLK243

Norden Cat 6 Shielded Keystone Jack Tool Less 180D are shielded with a two part case giving optimum protection from electromagnetic interference from an outside source. The rear casing is clicked into place after shielded cable has been fed through the centre and terminated to the jack. These Jacks are designed to reduce the Insertion loss & alien cross talk in order to provide maximum flexibility and high performance for all 10G Ethernet applications and are available in a 180° orientation with back interconnection of Dual IDC blocks in universal pin/pair assignment.180° orientation provides perfect termination with minimum distance to the IDC. This is tested to 250 MHz range over 100m and supports T568 A&B wiring & easy installation. The jack is manufactured with an integral cable strain relief. They can be installed into a number of faceplates and unloaded shuttered modules and backward compatible with category 5e/class D system components.

Category 6A Toolless Connectors exceed Category 6A long lasting high-performance and full support of all present and emerging applications, including 1000BASE-T (Gigabit-Ethernet). High quality overall shield provides excellent EMC (Electro Magnetic Compatibility), minimizing radiation and maximizing noise immunity, ensures long term resistance to corrosion from humidity, extreme temperatures, and airborne contaminants. Tested up to 500 MHz over 100m. These are mainly used for patch cord termination.

Norden Category 6 tool less UTP keystone Jacks give optimum protection from electromagnetic interference from an outside source. The tool-less termination allows all eight conductors to be terminated simultaneously when the termination cap is pressed into place .These Jacks are designed to reduce the Insertion loss & alien cross talk in order to provide maximum flexibility and high performance for all 10G Ethernet applications and are available in a 180° orientation with back interconnection of Dual Style IDC blocks in universal pin/pair assignment.180° orientation provides perfect termination with minimum distance to the IDC. This is tested to 250 MHz range over 100m and supports T568 A&B wiring & easy installation. The jack is manufactured with an integral cable strain relief. They can be installed into a number of faceplates and unloaded shuttered modules.

Norden offers a faceplates in USA standard to provide the basis for a wide range of possible information outlet combinations. These are available in blank (modular) forms with USA styles. The module features a designated area for labeling and these are supplied with M3.5 mounting screws.Norden faceplate is the ideal solution for office environments where multiple services need to be supplied at one location.
