Category 6 PCB Punch Down Right Angled Patch Panel 24 Port Loaded
Category 6 PCB Punch Down Patch Panel from Norden exceeds TIA and ISO component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications.The Right angled mounted PCB provides easy termination using a Krone or 110 punch down tool and there are colour coded labels for both 568A and 568B wiring configurations. All performance parameters, including NEXT, FEXT Attenuation and Return Loss are designed to meet the Cabling standard. The patch panel comes with mini cable ties, cage nuts and rear cable management bar as standard.
CATEGORY 6 RJ45 CONNECTOR
Category 6 Connectors exceed Category 6 long lasting high-performance and full support of all present and emerging applications, including 1000BASE-T (Gigabit-Ethernet). High quality overall shield provides excellent EMC (Electro Magnetic Compatibility), minimizing radiation and maximizing noise immunity, ensures long term resistance to corrosion from humidity, extreme temperatures, and airborne contaminants .The range of products includes plugs suitable for round cables with stranded or solid conductors, 24 to 26 AWG and are tested up to 250 MHz over 100 m. These are mainly used for patch-cord termination
CATEGORY 6 S/FTP AL-MG BRAID SLIM PATCH CORD
Norden Category 6 S/FTP patch cords are manufactured using high quality shielded four pair Category 6 stranded cable, and feature cable strain relief boots with a plug latch protection cap. It has overall Aluminium Magnesium Alloy wire as a shield which provides EMI protection. This patch cord, when used with high performance Norden Category 6 connectivity (Solid shielded cable, patch panels and work area outlets), provides superior performance capabilities of high bandwidth (Gigabit 1000Base-T and 1000Base-Tx) applications support. This is fully backward compatible with Category 5e (Class D) products. Each patch cord is tested with Fluke tester and individual cover included with the report. Norden Category 6 Patch cord is tested for transmission frequencies of up to 250 MHz.

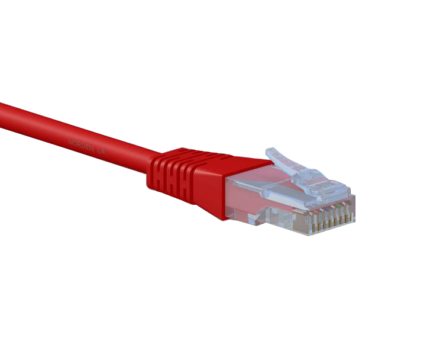

CATEGORY 6 S/FTP PATCH CORD
Norden Cat 6 S/FTP patch cords are manufactured using high quality shielded four pair Category 6 stranded cable, and feature cable strain relief boots with a plug latch protection cap. This patch cord when used with high performance Norden Category 6 connectivity (Solid shielded cable, patch panels and work area outlets), provide superior performance capabilities of high bandwidth (Gigabit 1000Base-T and 1000Base-Tx) applications support. This is fully backward compatible to Category 5e (Class D) products backup. Each patch cord is tested with Fluke tester and individual cover include with the report. Norden Category 6 Patch cord is tested for transmission frequencies of up to 250 MHz.

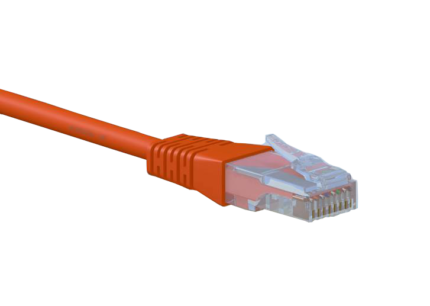

Category 6 S/ftp Patch Cord E-series
Norden Category 6 S/FTP patch cords are manufactured using high quality shielded four pair Category 6 stranded cable, and feature cable strain relief boots with a plug latch protection cap. This patch cord when used with high performance Norden Category 6 connectivity (Solid shielded cable, patch panels and work area outlets), provide superior performance capabilities of high bandwidth (Gigabit 1000Base-T and 1000Base-Tx) applications support. This is fully backward compatible to Category 5e (Class D) products_backup. Each patch cord is tested with Fluke tester and individual cover include with the report. Norden Category 6 Patch cord is tested for transmission frequencies of up to 250 MHz.

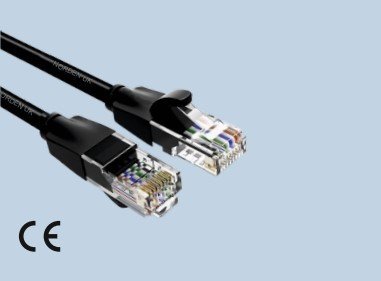

CATEGORY 6 U/UTP EXTERNAL DOUBLE JACKET PATCH CORD – PE WITH ANTI RODENT CHEMICAL
Norden Cat 6 U/UTP External Double Jacket Patch Cord consists of PE insulated 26AWG Stranded Bare Electrolytic Grade Copper Conductors (4 pairs), separated from one another through a cross separator (which improves the Cross Talk). The cable has an inner sheath of PVC followed by an outer jacket of PE with Anti-Rodent Chemical properties. This patch cord when used with high-performance Norden Category 6 connectivity (solid UTP cable, patch panels, and work area outlets), provide superior performance capabilities of high bandwidth (Gigabit 1000Base-T and 1000Base-Tx) applications support. Each patch cord is tested with a Fluke tester

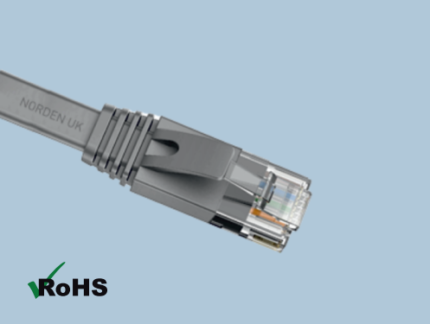

CATEGORY 6 U/UTP FLAT PATCH CORD
Norden Category 6 UTP flat patch cords are manufactured using high quality unshielded four pair Category 6 stranded cable ,and feature cable strain relief boots with a plug latch protection cap. This patch cord when used with high performance. Each patch cord is tested with Fluke tester and individual cover include with the report. Norden Category 6 Patch cord is tested for transmission frequencies of up to 250 MHz.

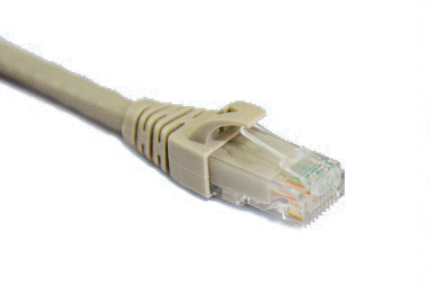

Category 6 U/UTP Patch Cord E-series
Norden Category 6 UTP patch cords are manufactured using high quality unshielded four pair Category 6 stranded cable, and feature cable strain relief boots with a plug latch protection cap. This patch cord when used with high performance. Each patch cord is tested with Fluke tester and individual cover include with the report. Norden Category 6 Patch cord is tested for transmission frequencies of up to 250 MHz.
Category 6 Unshielded Patch Panel Vertical Loaded 12P
Category 6 Unshielded Patch Panel Vertical Loaded 12 Port from Norden exceeds TIA and EIA component specifications, supporting network convergence protocols, delivering maximum bandwidth and extended reliability for all LAN, multimedia, and Power over Ethernet applications. This patch panel outlets will be available in loaded Version and the front of the panel each port is numbered. The patch panel is ideal for locations where cabinets are not present or where rack space is limited. The punch down termination offers fast and reliable installation of unshielded cable, quick and easy in termination.

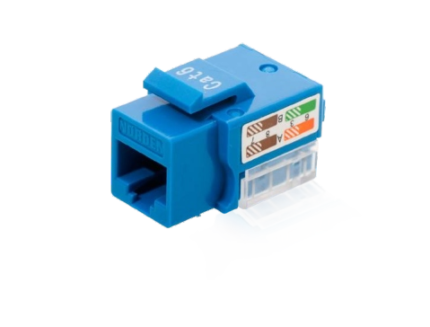

Category 6 UTP Keystone Jack
Norden Category 6 UTP punch down keystone Jack gives optimum protection from electromagnetic interference from an outside source. These Jacks are designed to reduce the Insertion loss & alien cross talk in order to provide maximum flexibility and high performance for all 10G Ethernet applications and are available in a 90° orientation with back interconnection of Dual Style IDC blocks in universal pin/pair assignment. 90° orientation provides perfect termination .This is tested to 250 MHz range over 100m and supports T568 A&B wiring & easy installation. The Jack is manufactured with an integral cable strain relief. They can be installed into a number of faceplates and unloaded shuttered modules and backward Compatible with category 5e/class D system components.
Category 6 UTP Keystone Jack Punch Down
UTP keystone jack exceed TIA/EIA and ISO component and channel performance, can be used in unloaded patch panels, face plates in a variety of colour options. These Jacks are designed to reduce the Insertion loss & Alien cross talk in order to provide maximum flexibility and high performance and are available in a 180° orientation with a dual termination block which will allow the installer to terminate with either a 110 or Krone insertion tool. This supports T568 A &B wiring & easy installation. The jack is manufactured with an integral cable strain relief.

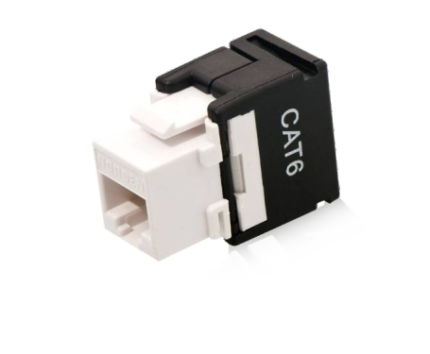

Category 6 UTP Keystone Jack Tool Less
Norden Category 6 tool less UTP keystone Jacks give optimum protection from electromagnetic interference from an outside source. The tool-less termination allows all eight conductors to be terminated simultaneously when the termination cap is pressed into place .These Jacks are designed to reduce the Insertion loss & alien cross talk in order to provide maximum flexibility and high performance for all 10G Ethernet applications and are available in a 180° orientation with back interconnection of Dual Style IDC blocks in universal pin/pair assignment.180° orientation provides perfect termination with minimum distance to the IDC. This is tested to 250 MHz range over 100m and supports T568 A&B wiring & easy installation. The jack is manufactured with an integral cable strain relief. They can be installed into a number of faceplates and unloaded shuttered modules.
